Octave Aspect Tank (formerly TANK)
Comprehensive Oil & Gas Storage Tank Design & Analysis Solution
Octave Aspect Tank (formerly TANK) is a comprehensive software solution developed by Octave for the design, analysis, and evaluation of steel oil storage tanks. Featuring an intuitive menu-driven interface, the software enables engineers to input data quickly and accurately in compliance with the latest API standards. Aspect Tank supports analysis under wind load, seismic activity, and foundation settlement conditions, and calculates ventilation requirements in accordance with API 2000 Section 4.3.
Core Values of Octave Aspect Tank
Six key benefits of using Octave Aspect Tank in oil and gas storage tank design for EPC projects Compliance with International API & EN Standards
Compliance with International API & EN Standards
Octave Aspect Tank performs calculations based on the latest API standards, including API 579 (Fitness-For-Service), API 620 (Design of Low-Pressure Storage Tanks), API 650 (Welded Steel Tanks for Oil Storage), and API 653 (Tank Inspection, Repair, Alteration, and Reconstruction). Additionally, the software complies with European standard EN 14015, ensuring adherence to international requirements for export-oriented projects.
Intuitive Interface with Context-Based Data Entry
Aspect Tank’s menu interface allows rapid definition of input data and access to analysis functions. Only relevant information is displayed at each stage, eliminating requests for out-of-sequence data. You are only prompted for necessary information at the right time. A context-sensitive help system provides real-time technical support during data entry, including standard references and engineering guidance.
Flexible Unit Systems
Aspect Tank offers complete flexibility in measurement units — enabling selection of any combination of units for analysis or report generation. Unit definitions are fully customizable, so engineers are not restricted to default settings. Existing project files can also be converted to any available unit format.
Extensive Material Database
Aspect Tank integrates a comprehensive built-in material database to facilitate accurate analysis and material selection. It includes structural steel specifications from US and international standards, along with API-compliant materials. Both carbon steel and stainless steel grades are supported.
Advanced Multi-Load Analysis
Aspect Tank performs analysis under wind, seismic, and foundation settlement loads, while also calculating nozzle loads and flexibilities. It further computes shell course thickness, roof thickness (for cone, dome, and umbrella designs), anchoring requirements, and allowable liquid heights.
Visual Reporting & 3D Graphics
Upon completion of analysis, results can be viewed in tabular reports or graphical formats with supporting data. Output reports reference the specific standards applied for easy verification. The software features interactive 3D visualization and drawing view modes, and supports report export to Word, PDF, and other formats. It also displays underlying formulas and calculation steps, allowing users to independently verify accuracy.
Technical Features of Octave Aspect Tank
Key analysis and design capabilities integrated into the software
Steel Oil Storage Tank Design
Aspect Tank supports comprehensive design of steel oil storage tanks, including calculation of shell course thickness, design of cone, dome, and umbrella roofs, and verification of allowable liquid heights.
Wind Load & Anchorage Analysis
The software calculates wind loads acting on storage tanks and designs corresponding anchorage systems. Analysis results ensure tank stability under high wind conditions in compliance with applicable design standards.
Seismic Analysis
Aspect Tank conducts seismic analysis for storage tanks, evaluates structural resistance to earthquake loads, and proposes appropriate reinforcement measures — a critical feature for projects in seismically active regions.
Foundation Settlement Analysis
The software evaluates the impact of soil settlement on tank structures and recommends foundation improvement solutions, ensuring long-term structural integrity and operational safety.
Nozzle Load & Flexibility Analysis
Aspect Tank calculates loads and flexibilities for tank nozzles — a key factor in ensuring that piping connections do not induce excessive stress on the tank shell.
Ventilation Calculation per API 2000
Aspect Tank determines ventilation requirements in accordance with API 2000 Section 4.3, ensuring tanks are designed with appropriate venting systems to prevent dangerous overpressure or vacuum conditions during operation.
Application Areas of Octave Aspect Tank
Eight industrial sectors utilizing the software per official product documentation
Chemical Industry
Supports design and analysis of storage tanks in chemical processing plants, ensuring safety and regulatory compliance for hazardous industrial fluids.

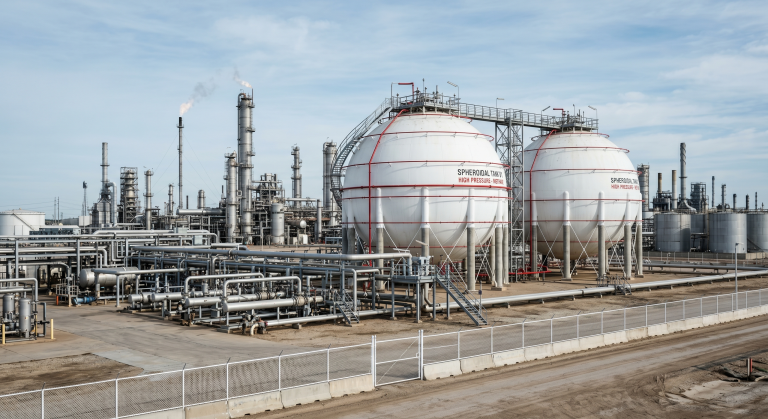

Oil & Petrochemicals
A core application area, where tanks for crude oil, refined products, and petrochemical intermediates require precise design per API 650, API 620, and related standards.
Industrial Equipment
Assists manufacturers in designing and verifying storage tanks and pressure vessels to meet standards, ensuring product quality prior to delivery for EPC projects.
Piping Design
Calculates nozzle loads and flexibilities during piping design projects, ensuring safe interface and operation between piping systems and storage tanks under operating loads.
Power Generation
Used in power plant projects to design and analyze fuel storage tanks (diesel, fuel oil), cooling water tanks, and related equipment, supporting reliable plant operation.

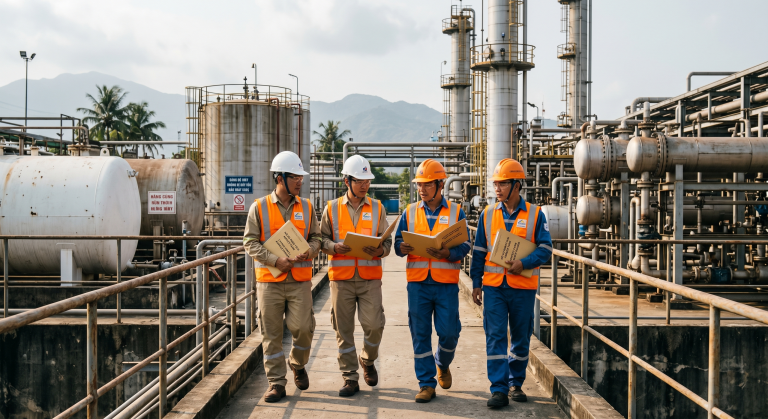

Process Industry
Supports design of intermediate and final product storage tanks in process plants, with comprehensive load calculations and full lifecycle compliance.

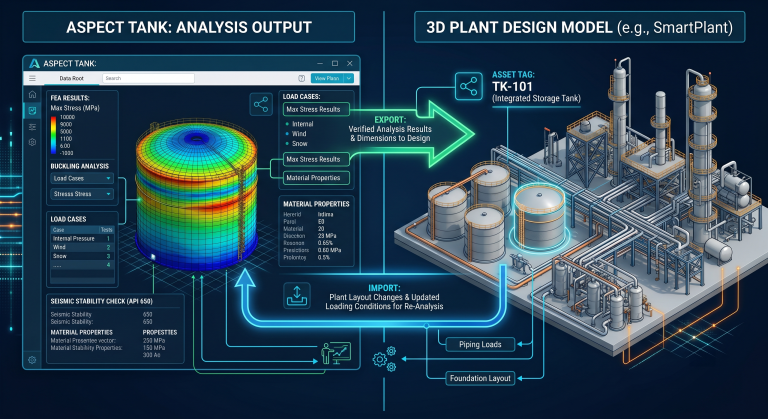

Plant Design
Integrates seamlessly into overall plant design workflows, providing accurate tank design data for 3D plant modeling and construction documentation — from FEED through detailed design phases.

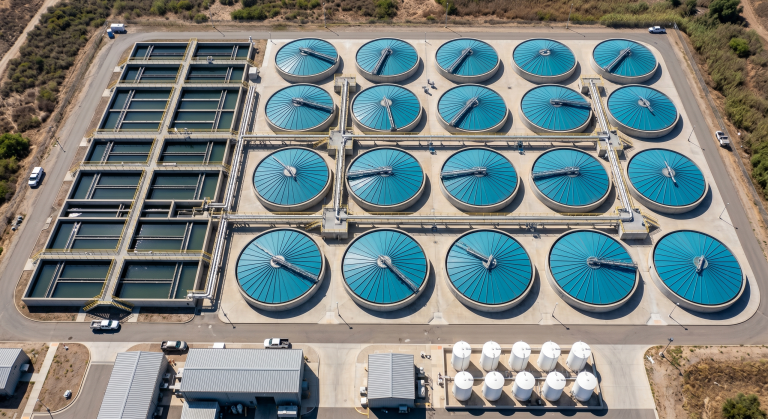

Water Treatment
Used for designing storage tanks and basins in water and wastewater treatment facilities, including chemical storage tanks (chlorine, PAC, polymers), potable water tanks, and flow equalization basins.
Frequently Asked Questions
Octave Aspect Tank performs calculations based on the latest API standards: API 579 (Fitness-For-Service), API 620 (Low-Pressure Tanks), API 650 (Welded Steel Tanks), and API 653 (Inspection, Repair, and Alteration). It also supports API 2000 Section 4.3 for ventilation design and European standard EN 14015.
Aspect Tank analyzes wind loads, seismic loads, and foundation settlement. It also calculates nozzle loads and flexibilities, as well as allowable liquid heights.
The software is widely applied in projects across 8 sectors: chemicals, industrial equipment, oil & petrochemicals, piping design, power generation, process industry, plant design, and water treatment.
Aspect Tank supports carbon steel and stainless steel, with access to US, international, and API-compliant structural steel databases. Supported roof designs include cone, dome, and umbrella types.
Yes. After analysis, results are available in tabular or graphical reports with referenced standards for easy review. Underlying formulas and calculation steps are provided to verify accuracy. Exports to Word, PDF, and other formats are supported, alongside interactive 3D visualization and drawing views.
